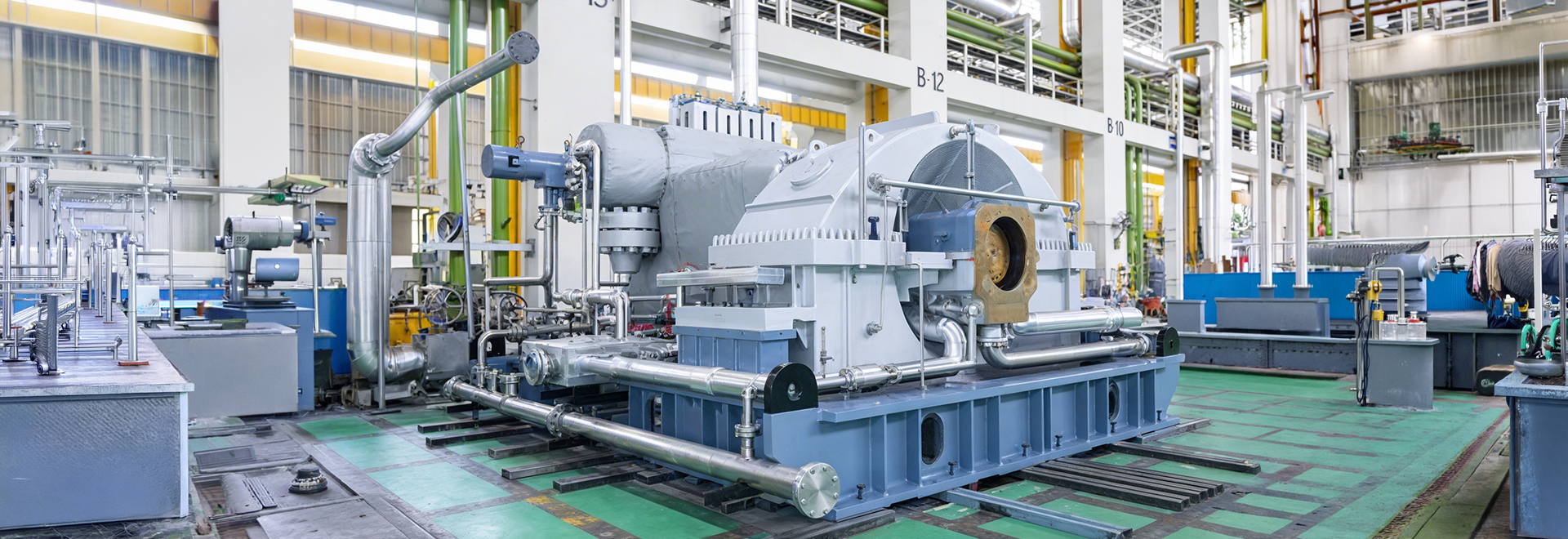

This project involved power system studies for a power plant configuration comprising two bleed extraction condensing turbines rated at 28 MW each. The electrical configuration includes two synchronous generators, each with a rated capacity of 30 MW, connected to a 37 MVA, 11/33 kV power transformer.

The 33 kV switchgear outgoing feeders supply multiple process areas including starch and glucose, mycelium, utility plants, effluent treatment and extraction units. The study scope included steady state assessments such as load flow analysis, short circuit studies, motor starting analysis and relay coordination evaluation.
